Towards reduced ultrasound localization microscopy acquisition times by uncoupling a bi-disperse microbubble population
Keywords:
Ultrasound Localization Microscopy, Ultrasound Contrast Agents, Microbubble Uncoupling, Monodisperse Microbubble Populations, Signal ProcessingAbstract
Background : Ultrasound Localization Microscopy (ULM) is a milestone in the medical vascular imaging context, enabling the precise characterization of micro-vascular structures using ultrasound imaging. By accurately localizing contrast microbubbles (MBs) flowing in the circulatory system, ULM generates micro-resolved vascular images, overcoming the ultrasonic diffraction limit. However, as ULM relies on precise localization and tracking of individual MBs, high MB concentrations yield to increased localization errors and, ultimately, ULM failure. This constraint limits ULM to low MB concentrations, resulting in long acquisition times that pose challenges in clinical settings.
Methods: Here, we show the feasibility of uncoupling a bi-disperse MB population, composed of two monodisperse MB populations. The uncoupling is performed through a signal processing pipeline that exploits the strong nonlinear response of MBs having resonance frequency tuned with the transmission frequency. After uncoupling, ULM density and velocity flow maps are generated.

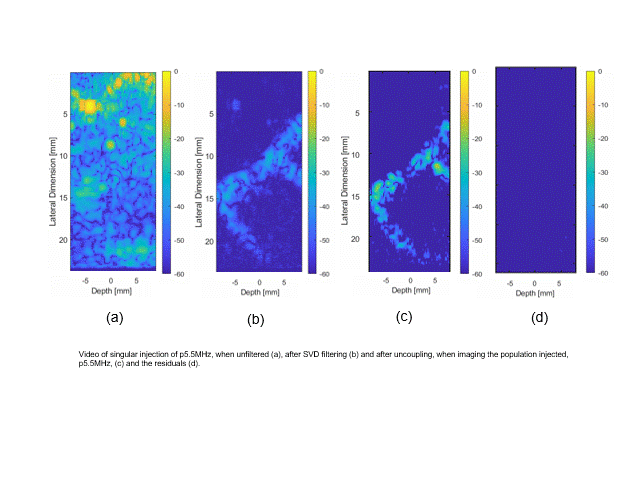

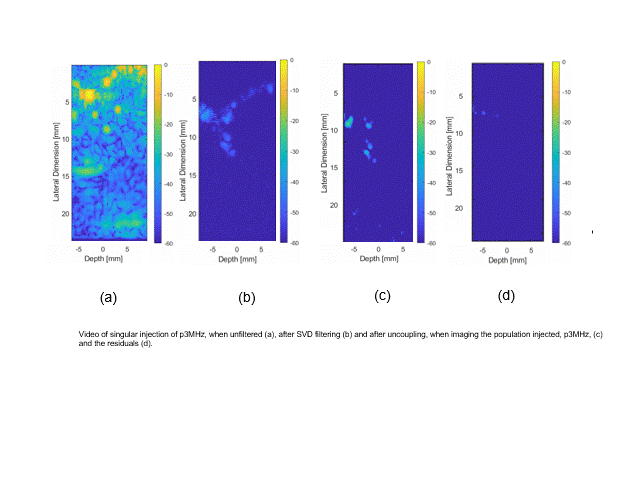

Results: Density and velocity maps are generated after uncoupling, when injecting the bi-disperse population individually and simultaneously in a vascular 3D-printed phantom. Furthermore, density maps generated after uncoupling are compared with the one obtained using standard ULM. Results demonstrate the capability of the proposed uncoupling pipeline to separate the bi-disperse population.
Conclusion: This work presents a signal processing pipeline to uncouple a bi-disperse MB population, formed by two monodisperse MB populations. Results are validated in a 3D-printed phantom and demonstrate the feasibility of the uncoupling which, in turn, would enable higher concentrations and reduce acquisition times for micro-vascular imaging.
References
Heiles B, Chavignon A, Hingot V, Lopez P, Teston E, Couture O. Performance benchmarking of microbubble-localization algorithms for ultrasound localization microscopy. Nat Biomed Eng. 2022 May;6(5):605-616. doi: 10.1038/s41551-021-00824-8. Epub 2022 Feb 17. PMID: 35177778.
Song P, Rubin JM, Lowerison MR. Super-resolution ultrasound microvascular imaging: Is it ready for clinical use? Z Med Phys. 2023 Aug;33(3):309-323. doi: 10.1016/j.zemedi.2023.04.001. Epub 2023 May 20. PMID: 37211457; PMCID: PMC10517403.
Carovac A, Smajlovic F, Junuzovic D. Application of ultrasound in medicine. Acta Inform Med. 2011 Sep;19(3):168-71. doi: 10.5455/aim.2011.19.168-171. PMID: 23408755; PMCID: PMC3564184.
Couture O, Besson B, Montaldo G, Fink M, Tanter M. Microbubble ultrasound super-localization imaging (MUSLI). 2011 IEEE International Ultrasonics Symposium. 2011 Oct;1285–7.
Christensen-Jeffries K, Couture O, Dayton PA, Eldar YC, Hynynen K, Kiessling F, O'Reilly M, Pinton GF, Schmitz G, Tang MX, Tanter M, van Sloun RJG. Super-resolution Ultrasound Imaging. Ultrasound Med Biol. 2020 Apr;46(4):865-891. doi: 10.1016/j.ultrasmedbio.2019.11.013. Epub 2020 Jan 21. PMID: 31973952; PMCID: PMC8388823.
Siepmann M, Schmitz G, Bzyl J, Palmowski M, Kiessling F. Imaging tumor vascularity by tracing single microbubbles. 2011 IEEE International Ultrasonics Symposium. 2011 Oct;1906–9.
Dencks S, Schmitz G. Ultrasound localization microscopy. Z Med Phys. 2023 Aug;33(3):292-308. doi: 10.1016/j.zemedi.2023.02.004. Epub 2023 Jun 15. PMID: 37328329; PMCID: PMC10517400.
Dollet B, van der Meer SM, Garbin V, de Jong N, Lohse D, Versluis M. Nonspherical oscillations of ultrasound contrast agent microbubbles. Ultrasound Med Biol. 2008 Sep;34(9):1465-73. doi: 10.1016/j.ultrasmedbio.2008.01.020. Epub 2008 May 1. PMID: 18450362.
Desailly Y, Pierre J, Couture O, Tanter M. Resolution limits of ultrafast ultrasound localization microscopy. Phys Med Biol. 2015 Nov 21;60(22):8723-40. doi: 10.1088/0031-9155/60/22/8723. Epub 2015 Oct 28. PMID: 26509596.
Huang C, Lowerison MR, Trzasko JD, Manduca A, Bresler Y, Tang S, Gong P, Lok UW, Song P, Chen S. Short Acquisition Time Super-Resolution Ultrasound Microvessel Imaging via Microbubble Separation. Sci Rep. 2020 Apr 7;10(1):6007. doi: 10.1038/s41598-020-62898-9. PMID: 32265457; PMCID: PMC7138805.
Tang S, Song P, Trzasko JD, Lowerison M, Huang C, Gong P, Lok UW, Manduca A, Chen S. Kalman Filter-Based Microbubble Tracking for Robust Super-Resolution Ultrasound Microvessel Imaging. IEEE Trans Ultrason Ferroelectr Freq Control. 2020 Sep;67(9):1738-1751. doi: 10.1109/TUFFC.2020.2984384. Epub 2020 Mar 31. PMID: 32248099; PMCID: PMC7485263.
Errico C, Pierre J, Pezet S, Desailly Y, Lenkei Z, Couture O, Tanter M. Ultrafast ultrasound localization microscopy for deep super-resolution vascular imaging. Nature. 2015 Nov 26;527(7579):499-502. doi: 10.1038/nature16066. PMID: 26607546.
Deffieux T, Demene C, Pernot M, Tanter M. Functional ultrasound neuroimaging: a review of the preclinical and clinical state of the art. Current Opinion in Neurobiology. 2018 Jun;50:128-135. DOI: 10.1016/j.conb.2018.02.001. PMID: 29477979.
Lin F, Shelton SE, Espíndola D, Rojas JD, Pinton G, Dayton PA. 3-D Ultrasound Localization Microscopy for Identifying Microvascular Morphology Features of Tumor Angiogenesis at a Resolution Beyond the Diffraction Limit of Conventional Ultrasound. Theranostics. 2017 Jan 1;7(1):196-204. doi: 10.7150/thno.16899. PMID: 28042327; PMCID: PMC5196896.
Li T, Sun H, Gai Y, Zhu L, Yang J, Ma C. Ultrasound Localization Microscopy for the Assessment of Microvascular Abnormalities in Transplant Renal Artery Stenosis. Ultrasound Med Biol. 2025 Nov;51(11):2120-2124. doi: 10.1016/j.ultrasmedbio.2025.07.032. Epub 2025 Aug 26. PMID: 40866163.
Hu X et al. Microvascular heterogeneity exploration in core and invasive zones of orthotopic rat glioblastoma via ultrasound localization microscopy. Eur Radiol Exp. 2025 Mar 5;9(1):30. doi: 10.1186/s41747-025-00555-4. PMID: 40045008; PMCID: PMC11882483.
Josquin Foiret, Zhang H, Tali Ilovitsh, Mahakian LM, Tam S, Ferrara KW. Ultrasound localization microscopy to image and assess microvasculature in a rat kidney. Scientific Reports. 2017 Oct 20;7(1).
Hingot V, Errico C, Heiles B, Rahal L, Tanter M, Couture O. Microvascular flow dictates the compromise between spatial resolution and acquisition time in Ultrasound Localization Microscopy. Sci Rep. 2019 Feb 21;9(1):2456. doi: 10.1038/s41598-018-38349-x. PMID: 30792398; PMCID: PMC6385220.
Li Y, Huang L, Zhang J, Huang C, Chen S, Luo J. Localization of High-concentration Microbubbles for Ultrasound Localization Microscopy by Self-Supervised Deep Learning. 2021 Sep 11;1–4.
Shin Y, et al. Context-aware deep learning enables high-efficacy localization of high concentration microbubbles for super-resolution ultrasound localization microscopy. Nat Commun. 2024 Apr 4;15(1):2932. doi: 10.1038/s41467-024-47154-2. PMID: 38575577; PMCID: PMC10995206.
van Sloun RJG, et al. Super-Resolution Ultrasound Localization Microscopy Through Deep Learning. IEEE Trans Med Imaging. 2021 Mar;40(3):829-839. doi: 10.1109/TMI.2020.3037790. Epub 2021 Mar 2.
Lerendegui M, et al. ULTRA-SR Challenge: Assessment of Ultrasound Localization and TRacking Algorithms for Super-Resolution Imaging. IEEE Trans Med Imaging. 2024 Aug;43(8):2970-2987. doi: 10.1109/TMI.2024.3388048. Epub 2024 Aug 1. PMID: 38607705.
Helbert A, Gaud E, Segers T, Botteron C, Frinking P, Jeannot V. Monodisperse versus Polydisperse Ultrasound Contrast Agents: In Vivo Sensitivity and safety in Rat and Pig. Ultrasound Med Biol. 2020 Dec;46(12):3339-3352. doi: 10.1016/j.ultrasmedbio.2020.07.031. Epub 2020 Sep 30. PMID: 33008649.
Segers T, Kruizinga P, Kok MP, Lajoinie G, de Jong N, Versluis M. Monodisperse Versus Polydisperse Ultrasound Contrast Agents: Non-Linear Response, Sensitivity, and Deep Tissue Imaging Potential. Ultrasound Med Biol. 2018 Jul;44(7):1482-1492. doi: 10.1016/j.ultrasmedbio.2018.03.019. Epub 2018 Apr 25. PMID: 29705522.
van Elburg B, et al. Dependence of sonoporation efficiency on microbubble size: An in vitro monodisperse microbubble study. J Control Release. 2023 Nov;363:747-755. doi: 10.1016/j.jconrel.2023.09.047. Epub 2023 Oct 21. PMID: 37778466.
Kanoulas E, et al. Super-Resolution Contrast-Enhanced Ultrasound Methodology for the Identification of In Vivo Vascular Dynamics in 2D. Invest Radiol. 2019 Aug;54(8):500-516. doi: 10.1097/RLI.0000000000000565. PMID: 31058661; PMCID: PMC6661242.
van Hoeve W, et al. Improved Sensitivity of Ultrasound-Based Subharmonic Aided Pressure Estimation Using Monodisperse Microbubbles. J Ultrasound Med. 2022 Jul;41(7):1781-1789. doi: 10.1002/jum.15861. Epub 2021 Nov 1. PMID: 34724241.
Castro-Hernández E, van Hoeve W, Lohse D, Gordillo JM. Microbubble generation in a co-flow device operated in a new regime. Lab on a Chip. 2011;11(12):2023.
de Jong N, Hoff L, Skotland T, Bom N. Absorption and scatter of encapsulated gas filled microspheres: theoretical considerations and some measurements. Ultrasonics. 1992 Mar;30(2):95-103. doi: 10.1016/0041-624x(92)90041-j. PMID: 1557838.
Kumar M.B., Sathiya P., Varatharajulu M. Selective Laser Sintering. BENTHAM SCIENCE PUBLISHERS eBooks. 2021 Nov 29;28–47.
Interventional [Internet]. Esaote.com. 2026 [cited 2026 Mar 3]. Available from: https://www.esaote.com/en-BE/interventional/probes
Song P, et al. Improved Super-Resolution Ultrasound Microvessel Imaging With Spatiotemporal Nonlocal Means Filtering and Bipartite Graph-Based Microbubble Tracking. IEEE Trans Ultrason Ferroelectr Freq Control. 2018 Feb;65(2):149-167. doi: 10.1109/TUFFC.2017.2778941. PMID: 29389649; PMCID: PMC5798010.
Kuhn HW. The Hungarian method for the assignment problem. Naval Research Logistics [Internet]. 2005 Feb [cited 2020 Oct 10];52(1):7–21. Available from: https://web.eecs.umich.edu/~pettie/matching/Kuhn-hungarian-assignment.pdf
McCall JR, Santibanez F, Belgharbi H, Pinton GF, Dayton PA. Non-invasive transcranial volumetric ultrasound localization microscopy of the rat brain with continuous, high volume-rate acquisition. Theranostics. 2023 Feb 5;13(4):1235-1246. doi: 10.7150/thno.79189. PMID: 36923540; PMCID: PMC10008741.
